LBS-I20™
The Eagle Engineering LBS-I20™ delivers precise metering of liquid color for masonry unit production. With built-in safeguards against dispensing errors and fully adjustable operator parameters, the LBS-I20™ maintains batch consistency across high-volume CMU production runs.
Liquid color dispensing errors in CMU production, over-dosing, under-dosing, and batch-to-batch variation, are often a system design problem, not an operator problem. The LBS-I20™ was built to take that variability out of the equation.
INSIGHTS
LBS-I20™ Liquid Dispensing
Read article →Why CMU Producers Use LBS-I20™
Precise volumetric dosing eliminates batch-to-batch color variation
Built-in interlocks prevent costly over- or under-dispensing errors
Adjustable parameters let operators fine-tune for different colors and viscosities
Designed specifically for CMU production cycle timing and flow requirements
Technical Specifications
| System Type | Liquid Color Dispensing |
| Application | Concrete Masonry Unit (CMU) Production |
| Metering | Precision Volumetric Dosing |
| Safeguards | Interlock & Monitoring Logic |
| Operator Interface | Adjustable Parameters |
| Configuration | Standard & Custom |
LBS-I20™ Standard System Drawing
General Arrangement · PDF
LBS-I20™ Integration Schematic
CMU Line Integration · PDF
GALLERY

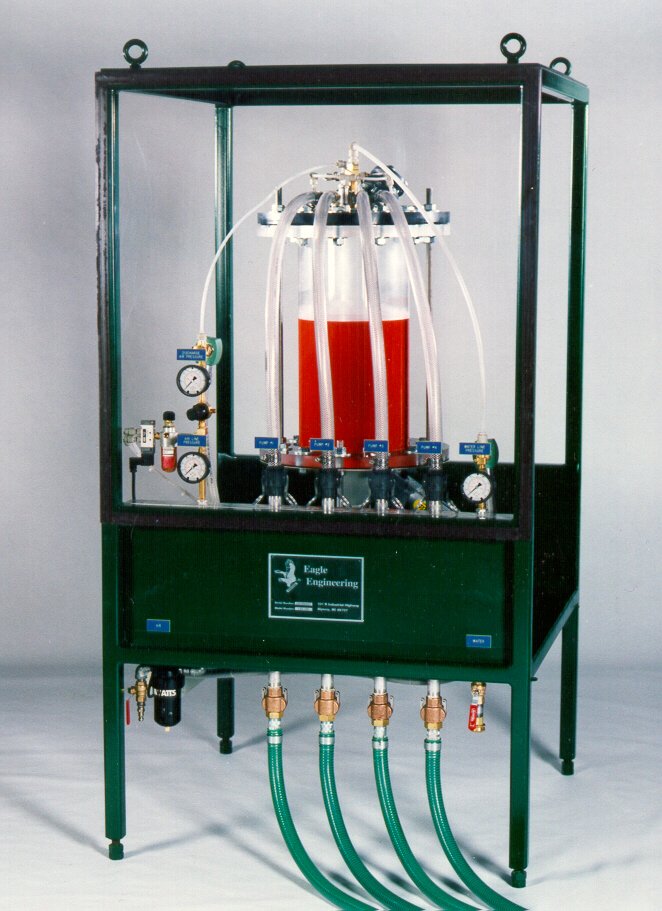

LBS-I20™ in the Field
System Highlights
Precise Liquid Metering
Engineered for exact liquid color dosing per masonry unit cycle. Batch consistency is guaranteed by design, eliminating color variation across high-volume production runs.
Dispensing Error Prevention
Built-in interlocks and monitoring logic prevent under- or over-dispensing, protecting product quality and reducing costly color waste.

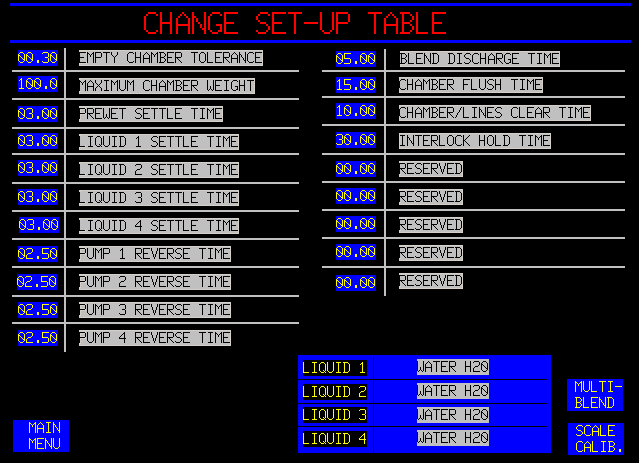

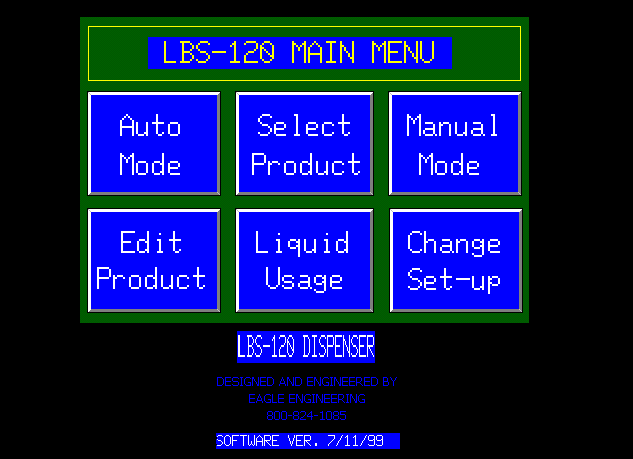

Adjustable Parameters
Operator-accessible parameter adjustments allow fine-tuning for different colors, viscosities, and batch sizes without requiring engineering intervention.
CMU Industry Focus
Purpose-built for the concrete masonry unit industry's production rhythms and color consistency requirements, designed to integrate directly into existing CMU lines.
BACKGROUND
The LBS-I20™ was developed specifically for the concrete masonry unit industry, where liquid color consistency directly affects product quality and customer acceptance. Built-in interlock safeguards and adjustable operator parameters give production teams precise control over dosing across high-volume CMU runs.
Case Studies
REPRESENTATIVE EXAMPLE · CONCRETE MASONRY
CMU Producer Reduces Color Waste After Switching to Precision Liquid Metering with LBS-I20™
A high-volume masonry facility was experiencing significant liquid color overuse due to manual dosing estimates that ran consistently above target. After integrating the LBS-I20™, dispensing was brought within specification per cycle, reducing color spend and eliminating the batch variability that was driving customer complaints.
REPRESENTATIVE EXAMPLE · CMU PRODUCTION
How Interlock-Protected Liquid Dispensing Stopped Over-Dosing Errors at a High-Volume Masonry Facility
Operator-initiated over-dispensing during shift transitions was causing batches to be rejected or reworked at significant cost. The LBS-I20™'s built-in interlock logic removed the manual override path, protecting product quality during high-throughput runs without adding operator workload.
Request a Quote
Ready to integrate the LBS-I20™ into your masonry line? Provide your batch cycle and color requirements and we will quote a complete system.
